Description

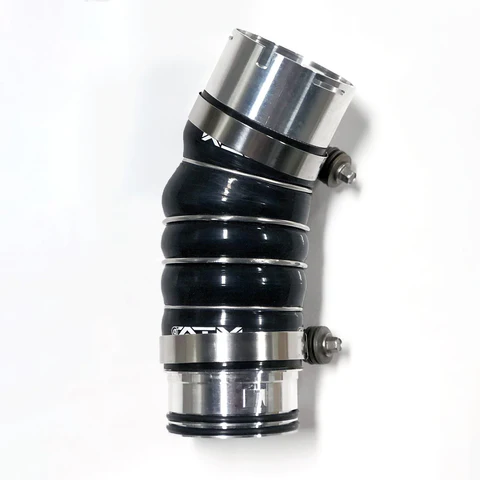

This product is a direct replacement for the leaky factory hose and is compatible with the stock quick connections. It offers better sealing, higher-quality silicone hose, and high-quality constant tension clamps to eliminate boost leaks and restore your car’s performance.
Features
- Directly compatible with the stock intercooler and turbo connection
- 4-ply fluoro-lined silicone hose made to ATM’s custom specifications
- CNC-machined fittings with dual o-rings on both ends for a superior seal
Kit Includes
- Heavy-duty constant tension hose clamps
- Includes everything needed for installation
Fits the Following
- 2008-2012 335d
Installation Steps
- Loosen the intercooler enough to remove the red factory boost hose
- Clean the sealing surfaces of the intercooler and the turbo outlet
- Cut off the small plastic tab on the bottom of the intercooler inlet
- Using the supplied lubricant, coat all sealing surfaces and o-rings
- Install respective CNC ends onto the intercooler inlet and turbo outlet, making sure retaining clips snap in place.
- Install the hose and clamps while pushing the intercooler back in place. Torque for constant-tension clamps is 45 in/lbs (335d). (Shorter end of 335d hose goes towards the turbo).
Note: Fitting may require modification when used with aftermarket intercoolers
